Maximizing Solar Power Efficiency: Running Solar Panels in Series or Parallel with the EcoFlow Stream Microinverter

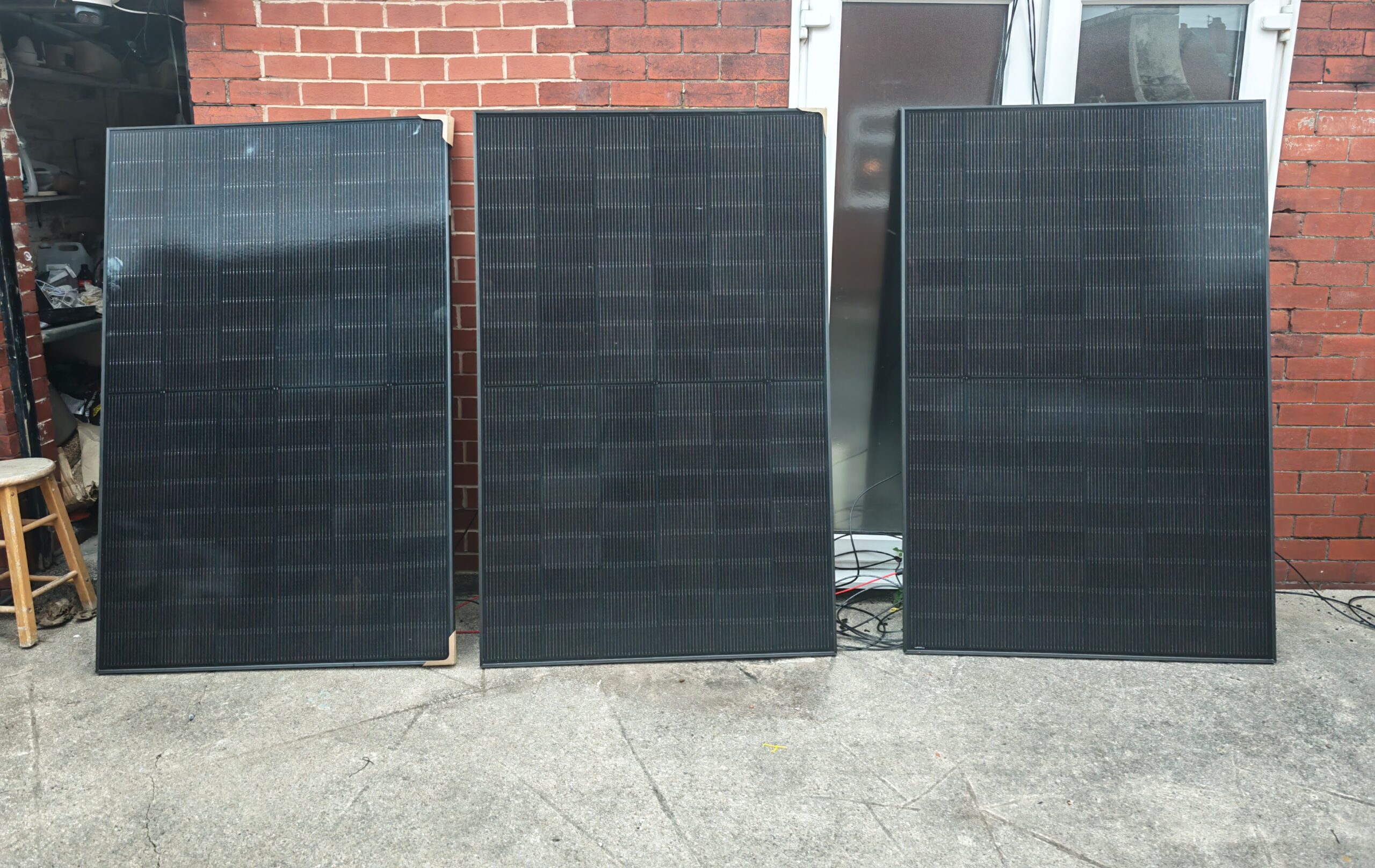

The EcoFlow Stream Microinverter is a device that allows you to create a small solar array without the need for a full rooftop installation. It is designed to be used on balconies, garden walls, sheds, or garages. During testing, a question arose about whether you can wire extra panels together, either in series or in parallel, to maximize the output of a single microinverter input. This was tested using JA Solar 460W All Black panels, and the results show that there are some electrical limits that need to be considered before attempting this.

The EcoFlow Stream Microinverter is a popular choice due to its plug-in solar capabilities. It can accept input from two solar panels, one per MPPT port, and convert the DC power they produce into AC power for your home. The build quality is solid, with an IP67 rating for outdoor use and a 10-year warranty.

In terms of specs, each MPPT port can handle up to 600W, with a maximum DC input of 1200W across both ports. However, the AC output is capped at 800W to comply with UK and European microgeneration limits. This is a common feature in solar inverters to allow for variations in real-world conditions.

The cost and payback of the EcoFlow Stream Microinverter are attractive, especially with rising energy prices. The hardware costs around £315 for a microinverter and two 460W solar panels. The system can generate up to 858 kWh annually, saving up to £115 per year. The payback period is around 2.5 to 3 years if installed by yourself, but with a registered electrician, it could be 5 to 7 years.

The legality of plug-in solar systems in the UK has been a topic of discussion. While the government has made progress in updating regulations to allow for plug-in solar systems, there are still some standards and certifications that need to be met before DIY installations are allowed.

The EcoFlow Stream Microinverter specifications include two MPPT channels, a maximum input power of 600W per port, and a rated AC output power of 800VA. It has an IP67 rating and comes with a 10-year warranty.

The JA Solar 460W All Black panels are a popular choice for pairing with the EcoFlow microinverter due to their price and efficiency. They have a maximum power output of 460W and a module efficiency of 23%. They come with a 25-year warranty and are compatible with MC4 EVO2A connectors.

When it comes to wiring the JA Solar 460W panels with the EcoFlow Microinverter, it is not recommended to wire more than one panel per MPPT port. While it is theoretically possible to wire two panels in parallel, the current output could exceed the limit of the microinverter. In series, the voltage output would exceed the maximum input voltage of the microinverter, posing a safety risk.

In conclusion, while it may be tempting to maximize the output of your solar array by wiring multiple panels together, it is important to consider the electrical limits and safety implications before doing so. It is always best to consult with a qualified electrician before attempting any wiring modifications.
